Air Duct Wire Rope Suspension

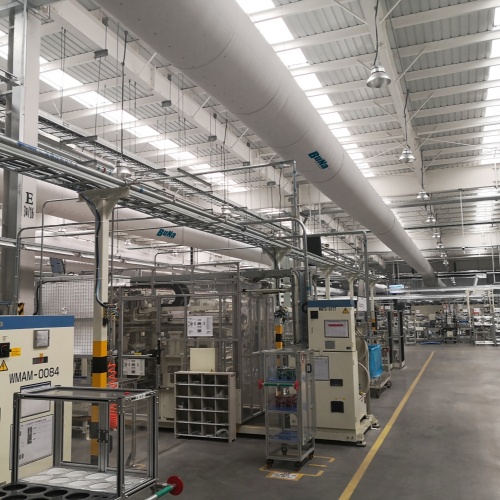

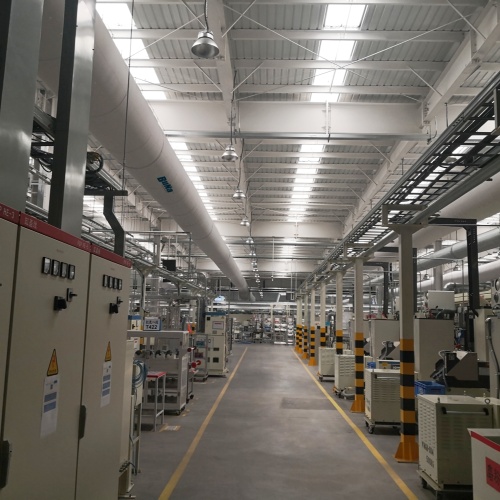

Installation method of steel cable suspension system for Bag Air Duct

The steel cable suspension system is widely used due to its simple installation and high cost-effectiveness. According to the number of suspension rows, it is divided into single row steel cable suspension system and double row steel cable suspension system installation methods. According to the direction of the hanging clock, it is classified into three types: 12 o'clock (single row), 2 o'clock and 10 o'clock (double row), 3 o'clock and 6 o'clock (double row), 3 o'clock, 9 o'clock, and 12 o'clock (such as multiple rows and three rows).
   The main materials required for the installation of wire rope suspension include: Buna Air Duct and its components (straight pipe, inlet, end, tee, elbow, reducer, etc.), components (PAD pressure balance valve, ACD air volume control valve), accessories (steel rope, lifting ring, clamp head, flower basket, hook), etc.
   The steel cable suspension system requires the production of brackets, which are used to straighten the steel cables and install them on the building structure (floor slabs, beams, steel roof trusses, walls). The bracket scheme should be as simple and firm as possible. Generally, the bracket material is determined by the height of the on-site bracket and the length of the fiber Fabric Air Duct system steel cable suspension system, using angle steel, channel steel, or square steel.
   When installing the steel cable suspension system, be sure to pay attention to the spacing and height of the steel cables, and be precise. During installation, the steel cable suspension system should be tightened and straightened as much as possible. Install the fiber Fabric Duct system inlet onto the metal joint. Install the fiber fabric duct system onto the suspension system through the hooks on the fiber fabric duct. (If not connected together with a zipper, first install the entrance end) Connect the fiber fabric duct system pipes of each part with a zipper. Straighten the system and use cable clamps to secure the end of the fiber fabric duct system to the suspension system. Adjust the flower basket bolts to make the suspension system straight after bearing the weight of the system. Install suspension points at intervals of 10-15m, and the suspension points should be in the same plane as the suspension system in the vertical direction.
